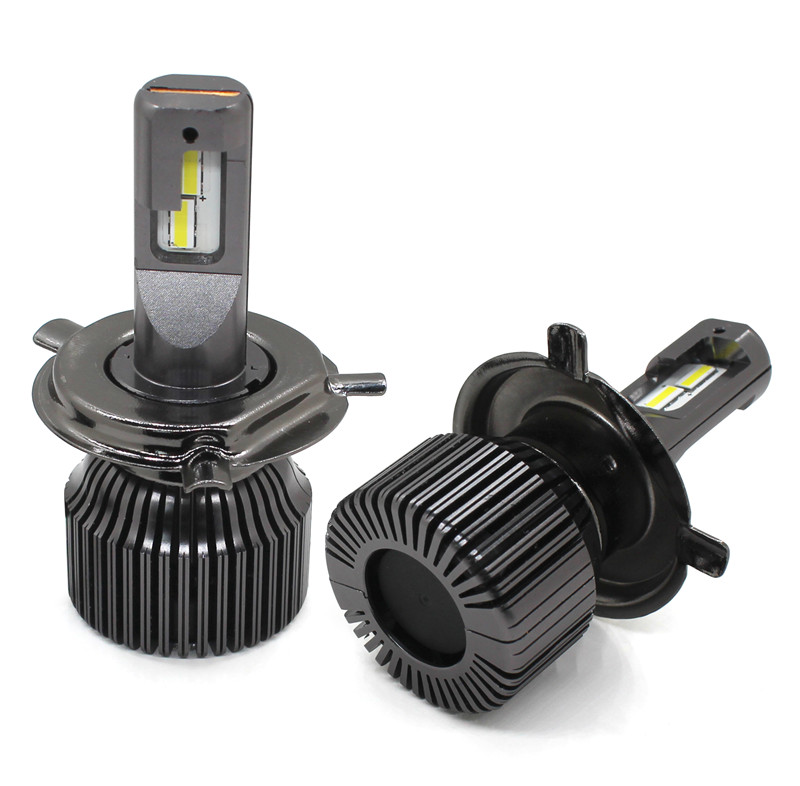

T-800
--
1. Customized CSP CHIP 3570 2. Copper substrate3. Aviation Aluminum alloy 60634. 360° adjustable chuck5. Dual-ball high speed fan6. Intergrated multi-function driver7. Small heat sink of Φ35mm Speci...
1. Customized CSP CHIP 3570
2. Copper substrate
3. Aviation Aluminum alloy 6063
4. 360° adjustable chuck
5. Dual-ball high speed fan
6. Intergrated multi-function driver
7. Small heat sink of Φ35mm
Specifications:
Power | 40W | Color temperature | 6000K/4300K/3000K |
Voltage | 9-36V | IP rate | IP65 |
Light source chip | 3570 60mil | Lifetime | 50000 hours |
Lumens flux | L/5000Lm,L/5000Lm | Structure material | Aviation Aluminum alloy 6063
|
Working temp | -40-105℃ | Cooling pattern | Dual ball fan |
Overheating protection | Yes | EMC | Yes |
CANBUS | Available |
EG: H1,H3,H4,H7,H8,H9,H11,H13,H16,9005,9006,9007,9012,5202,880,881
